Description

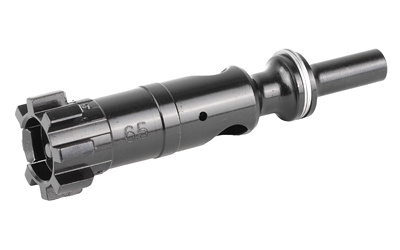

Faxon 9310 6.5 Grendel / ARC Type 2 Bolt (.136)- Nitride – Category: Rifle Parts – Platform: AR15 – Series: Bolts – Caliber/Cartridge: 6.5 Grendel 6mm ARC 22 ARC 338 ARC – The Faxon 9310 6.5 Grendel / ARC Type 2 Bolt (.136)- Nitride is a premium AR-15 replacement bolt designed for SAAMI-spec Grendel and ARC cartridges. Treating MIL-SPEC as the baseline Faxon refines material selection inspection and surface finishing to deliver consistent reliability and long service life. – Each bolt is machined from 9310 tool steel fully heat-treated shot-peened and Magnetic Particle Inspected (MPI) to ensure material integrity. The bolt receives a salt bath nitride treatment to increase surface hardness reduce friction and provide excellent corrosion resistance compared to phosphate finishes. – Bolt lugs are chamfered to promote smooth cycling-even with higher-pressure loads and fast actions. The extractor is manufactured from S7 tool steel and assembled with a spring silicone insert and Crane O-ring to support consistent extraction. – Compatibility Note: This is a Type 2 (.136) bolt and is not compatible with Faxon 7.62×39 barrels. – Detailed Specifications – Bolt – 9310 Tool Steel Construction – Type II (.136 co-bore) bolt face – Compatible with SAAMI-spec 6.5 Grendel 6mm ARC 22 ARC and 338 ARC barrels – Full MIL-SPEC Heat Treatment – Shot Peened to MIL-SPEC – Magnetic Particle Inspection (MPI) – Back of lugs chamfered for reliability – Spring Insert & Crane O-ring installed – Salt Bath Nitrided – Extractor – S7 Tool Steel Construction – Fully Heat Treated – Shot Peened per MIL-SPEC
